Modular AC DOB Flood Light High Power 240W Streetlight
--Multiple function. Can be installed as street light, flood lights, linear high bay light, soccer field light, high pole light, etc.
--5 Years warranty for unhuman damage
--Beam angle available: 45° /60° /90° / 120° /80*30°
--CE&RoHS&SAA approved
--Better Thermal Dissipation, Temp. Rise<27 degree
--Up to 1200W Replacement, 130lm/w
--Adjustable bracket for easy mount installation. Also can be suspending as request.
--L80 calculated life: 50,000+ hours
--Can be assmbled as different shape per the actual application
--Driverless DOB solution, stable performance
Driverless LED Flood Light
|
1. Patent Design, suspend & mounted installation. 2. Different beam angle, meet different using environment especially asymmetric light distribution.
3. High power LED heat sink has perfectly replaced the traditional 400W to 1000W sodium lamp, this energy-saving cutting edge innovation fills the gap in the led heat sink market. 5. Durable, long lifetime up to 50,000 hours; No need frequent lamps replacement and regular maintenance.
|
|
|
Dimensions
Optical Parameters:
|
Model |
Power |
Input Voltage |
LED Qty |
Luminous efficacy |
CCT |
CRI |
PF |
Bean Angle |
|
XP-FL240M00 |
240W |
AC200-240V 50-60Hz |
320PCS 3030 |
120lm/w
|
3000- 6500K |
80 |
0.90 |
45° 60° 90° 120° 80°*30° |

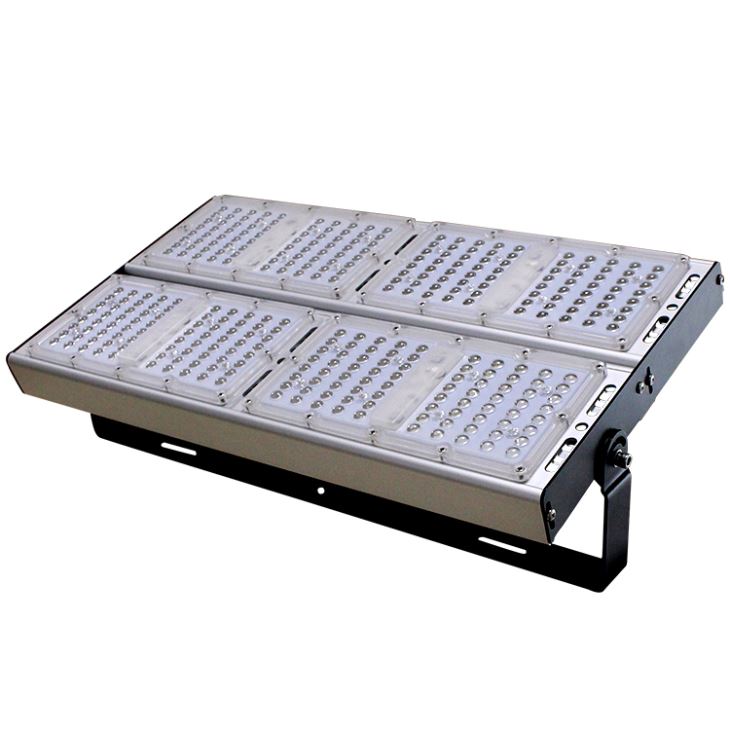

Product Picture:
|
|
|
Packaging Data
|
Model |
Power |
N.W./pcs (kg) |
Q’ty/CTN (pcs) |
G.W./CTN(kg) |
CTN Size(mm) |
|
XP-FL240M00 |
240W |
4.46KG |
1PCS |
5.3KG |
540*285*57mm/PCS |
Application
