Multiple Styles UFO High Bay 200W~800W
UFO LED High Bay Light High 200W/300W/400W/600W/800W UFO high bay light,Use MEAN WELL power supply,Using 1070 pure aluminum cold forging process, high thermal conductivity, twice the thermal conductivity of die-cast aluminum. Multiple styles, Multiple watts choices, smaller size, safer, higher...
UFO LED High Bay Light
High 200W/300W/400W/600W/800W UFO high bay light,Use MEAN WELL power supply,Using 1070 pure aluminum cold forging process, high thermal conductivity, twice the thermal conductivity of die-cast aluminum. Multiple styles, Multiple watts choices, smaller size, safer, higher cost and effective.Widely used in warehouses, workshops, football fields, etc.
Features:
● High Light efficiency 140lm/w;
● 60°/90°/120°beam angle option;
● Watt range from200W/300W/400W/600W/800W
● Flexible combination into different shape and power
● High CRI≥80;
● Protection class IP65
● High quality powder paint treatment
● CE,RoHS&SAA&C-tick Approval.

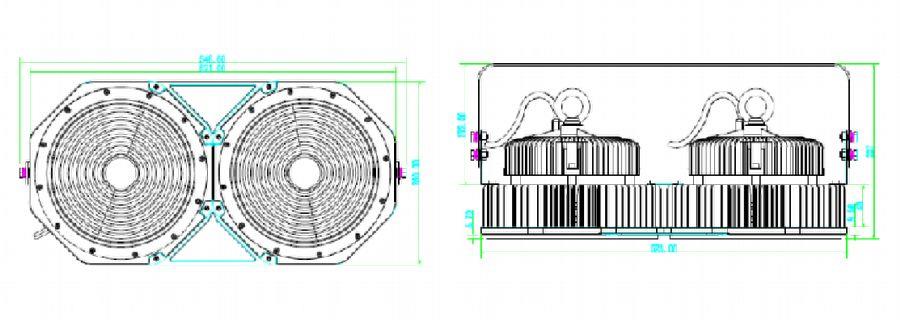

Dimensions
Optical Parameters:
|
Model |
Power |
Input Voltage |
LED Qty |
Luminous efficacy |
CCT |
CRI |
PF |
Bean Angle |
|
XP-HB200M00 |
200W |
AC90-305V |
336PCS |
130lm/w |
3000- 6500K |
80 |
0.90 |
45° |
|
XP-HB300M00 |
300W |
AC90-305V |
504PCS SMD3030 |
|||||
|
XP-HB400M00 |
400W |
AC90-305V |
672PCS |

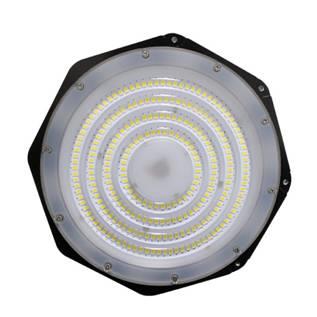

Product Picture:
|
|
|
|
|
|
Packaging Data
|
Model |
Power |
N.W./pcs (kg) |
Q’ty/CTN (pcs) |
G.W./CTN(kg) |
CTN Size |
|
XP-HB200M00 |
200W |
7.02KG |
1PCS |
7.52KG |
42*22*25CM/PCS |
|
XP-HB300M00 |
300W |
7.62KG |
1PCS |
7.98KG |
42*22*25CM/PCS |
|
XP-HB400M00 |
400W |
10.3KG |
1PCS |
14.02KG |
55*28*27CM/PCS |
Appliction
