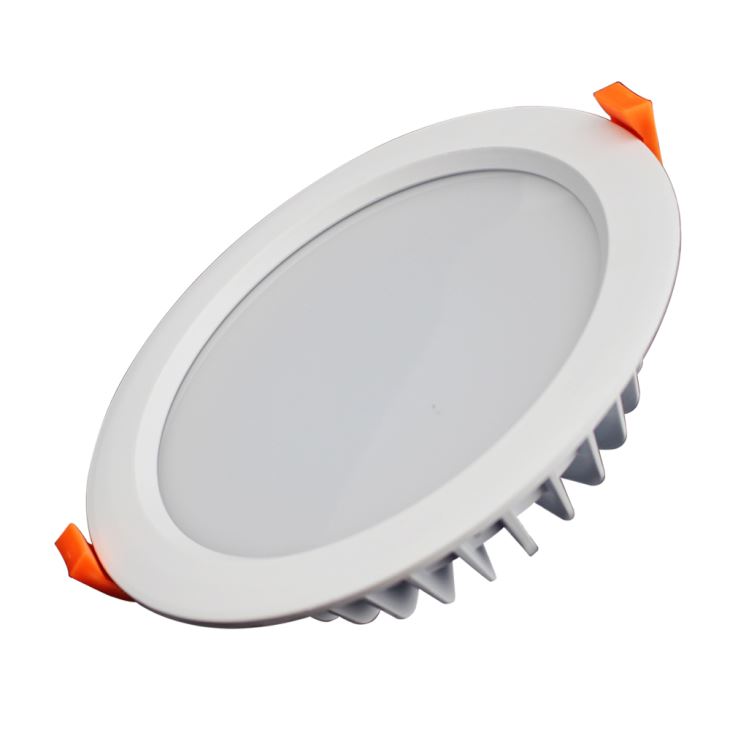

IP65 SMD White 18W Waterproof LED Recessed Downlights for Bathrooms

Size:mm
1. Open hole on the ceiling as specified,Diameter:￠95mm;
2. Cut off electricity, connect the driver input with electricity through the hole;
3. Connect the driver output with the lamp;
4. As the photo shows, put the lamp into the hole and adjust it to suitable position Troubleshooting ：...

Send Inquiry Chat Now

Product Details

Feature:
1. IP65 waterproof
2.High light efficiency 100lm/w
3.8w, 12w,20w available
4.3 years warranty

Item No.	Power	Dimmension	Hole Size	Number of LEDs	Input Volt	Protection class	Light effect
XP-DL008F00	8W	￠90*45mm	￠78mm	SMD2835 36LED	AC100-240V	IP65	>100LM/W
XP-DL012F00	12W	￠108*50mm	￠95mm	SMD2835 48LED	AC100-240V	IP65	>100LM/W
XP-DL020F00	20W	￠190*53mm	￠170mm	SMD2835 72LED	AC100-240V	IP65	>100LM/W

Size:mm

1. Open hole on the ceiling as specified,Diameter:￠95mm;

2. Cut off electricity, connect the driver input with electricity through the hole;

3. Connect the driver output with the lamp;

4. As the photo shows, put the lamp into the hole and adjust it to suitable position

Troubleshooting：

Fault 1、The lamp does not light after connecting the electricity.

Method：Carefully check all wiringsare correct.

Fault 2、The lamp flashes when it is powered on.

Method：Check if the power supply voltage meets the requirement.3

Waring：

Must be installed by a qualified electrician in accordance with local wiring rules and codes.

Application:

Widely used in the office building, shopping malls, supermarkets, municipal engineering school, hospital, hotel, parking lots, factory workshop, household and so on.

1、Carton label on top left of inner box, product label on lamp;
2、Transportation :Seal the package before delivery, handle gently, and mark product name, quantity and other important information on packing.
3、Storage Requirement：Moisture-proof,dust-proof, anti-pressure,anti-fall, anti-acid substances, avoid direct sunlight and condensation.
4、Storage Time：1year. It should be recheck and make sure the lamp electrical performance up to standard after one year storage.
